Kaksik-termostaat ZR 011, heating -10..50°C 1NC/ cooling +20..80°C 1NO Kood:
01175.0-00
Hind
|
Saadavus:
küsi tarneaega
|
Kaal:
0.11 kg/tk
|
Maht:
0.0002 m3/tk
|
Hulgipakendi kogus:
10tk
|
|
|
|
Twin Thermostat ZR 011 -10...+50°C 1nc/ +20...+80°C 1no
Features:
|
- Large setting range
- Small size
- Simple to mount
- High switching performance
| KTO 011-2: |
| KTS 011-2: |
Thermostat (normally open); contact maker for regulating filter fans and heat exchangers or for switching signal device when temperature limit has been exceeded. |
|
Specification
|
|
| KTO 011-2 NC (normally closed) |
When the temperature reaches the set value, open circuit |
| KTS 011,2 NO (normally open) |
When the temperature exceeds the set value action, closed circuit |
| Switch temperature difference |
7K(±4K tolerance) |
| Sensor element |
thermostatic bimetal |
| Contact type |
Snap-action |
| Contact resistance |
<10m ohm (Incidental connection line) |
| Service life |
>100,000 cycles |
| Max.Switching capacy |
250VAC,10(2)A
120VAC,15(2)A
30WDC at 24VDC to 72VDC |
| Connection |
2-pole terminal, clamping torque 0.5Nm max.:
rigid wire 2.5mm²,
stranded wire (with wire end ferrule) 1.5mm² |
| Casing |
plastic according to UL94 V-0, light grey |
| Installation |
35mm DIN Installation guide |
| Dimensions |
60 x 33 x 43 mm |
| Weight |
90g |
| Fitting position |
variable |
| Operating/Storage temperature |
-20ºC to +80ºC |
| Protection type |
IP20 |

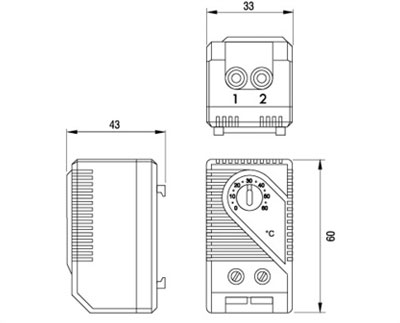

| Installing method |
 |

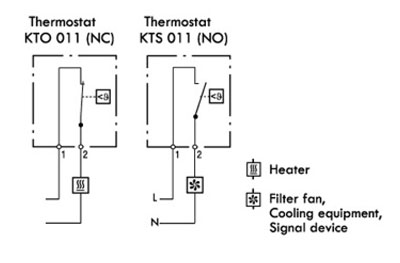

| Connections diagram |
 |
| Examples of connections |
 |
| Setting range |
 |
|
|
